How do I confirm the correct bore size and ply rating before ordering blast hose?

Match hose inner diameter to your nozzle bore and machine output — undersized hose restricts airflow and causes pressure drop. For ply rating, use 1-ply for light duty, 2-ply for general industrial blasting, and 4-ply for heavy continuous use. Share your nozzle ID, compressor CFM, working pressure, and hose length and our team will confirm the right specification before you place an order.

What working pressure and CFM should my sand blasting hose handle?

Standard abrasive blasting hose is typically rated for 10–12 bar (150–175 psi) working pressure. CFM demand depends on nozzle size and blast pressure — a 1/2" nozzle at 90 psi may need 175+ CFM. Always select hose rated above your maximum operating pressure and ensure your compressor and blast pot can sustain the required airflow without starving the nozzle.

Are couplings and end fittings included with the hose or sold separately?

Blast hose can be supplied bare (cut length only) or with couplings pre-fitted at one or both ends. Screw-type, quick-connect, and flange fittings are available to match your blast pot, nozzle holder, and machine connections. Mention your existing coupling type or share a photo when requesting a quote so we supply compatible fittings.

What is the typical lead time for sand blasting hose and spare parts?

Standard bore sizes and common spare parts are usually ready for dispatch within a few working days from our Jodhpur facility. Custom lengths, special fittings, or bulk export orders may need additional lead time. Share quantity, specifications, and delivery location when enquiring and we will confirm availability and dispatch schedule.

Can I order custom hose lengths with pre-fitted couplings?

Yes. We cut blast hose to your required length and fit end couplings in-house — screw-type, quick-connect, and flange options are available. Custom assemblies reduce on-site cutting and eliminate mismatched connections between hose, holder, and blast pot. Specify total length, coupling type at each end, and quantity when ordering.

How should I store and maintain abrasive blasting hose?

Store hose coiled in a cool, dry area away from direct sunlight, oil, and solvents. Avoid sharp bends, kinks, and dragging on abrasive surfaces during use. Inspect the outer cover and couplings regularly; replace hose when wall thickness wears thin or bulging appears. Proper care extends service life to hundreds of blasting hours on quality 2-ply hose.

Do you offer bulk pricing for contractors, fabricators, and resellers?

Yes. We offer competitive volume pricing on sand blasting hose, shot blasting hose, nozzles, couplings, and spare parts for contractors, shipyards, fabrication shops, and distributors. Share your monthly or project-based quantity, product specifications, and delivery location for a tailored quote with bulk rates and repeat-order support.

What details should I include in a product enquiry or quote request?

For hose, mention bore size, ply rating, length, quantity, and whether couplings are required. For spare parts, share machine model, part name, or a photo of the component. Include delivery city or country, intended application, and contact details. The more specific your enquiry, the faster we can respond with accurate pricing and lead time.

Pinch Valve Sleeve Guide: Types, Uses & Benefits

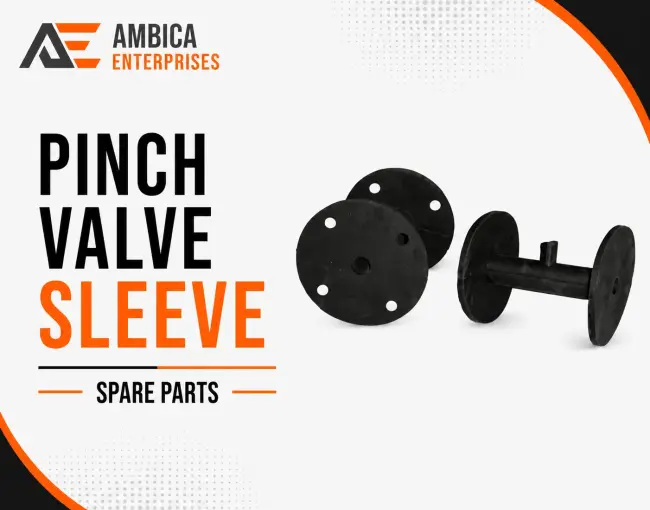

Introduction of Pinch Valve Sleeve

5.0 (19 reviews)

Price range ₹800 – ₹3,500

Quality Pinch Valve Sleeve for sand blasting and abrasive blasting systems — supplied and exported worldwide.

Replaceable elastomer sleeve for pinch valves
Direct contact only with abrasive media path
Options in NR, EPDM, nitrile, and specialty rubber
Restores shut-off performance without full valve replacement
Export-ready pinch valve sleeves and spare kits

In-House Supply

Global Export

Quick Quote

Product Name	Pinch Valve Sleeve
Price Range	₹800 – ₹3,500
Product Type	Replaceable elastomer sleeve / tube
Also Known As	Pinch valve rubber sleeve, pinch tube, sleeve liner
Sleeve Material	Natural rubber, NR, EPDM, Nitrile, food-grade options
Available Sizes	15 mm to 100 mm (½″ to 4″) and custom sizes
Compatibility	Manual, pneumatic, and industrial pinch valves
Media Handled	Sand, grit, shot, abrasive powders, slurries
Working Pressure	Matched to pinch valve rating (commonly up to 6 bar)
Temperature Range	Depends on elastomer grade
Shut-Off	Supports bubble-tight pinch closure
Maintenance	Replace sleeve when worn — low downtime spare
Applications	Sand blasting machines, abrasive handling, slurry lines
Supply Scope	Domestic India supply and worldwide export packing
Key Features	Wear resistant, easy replacement, restores valve life

Product Name

Pinch Valve Sleeve

Price Range

₹800 – ₹3,500

Product Type

Replaceable elastomer sleeve / tube

Also Known As

Pinch valve rubber sleeve, pinch tube, sleeve liner

Sleeve Material

Natural rubber, NR, EPDM, Nitrile, food-grade options

Available Sizes

15 mm to 100 mm (½″ to 4″) and custom sizes

Compatibility

Manual, pneumatic, and industrial pinch valves

Media Handled

Sand, grit, shot, abrasive powders, slurries

Working Pressure

Matched to pinch valve rating (commonly up to 6 bar)

Temperature Range

Depends on elastomer grade

Shut-Off

Supports bubble-tight pinch closure

Maintenance

Replace sleeve when worn — low downtime spare

Applications

Sand blasting machines, abrasive handling, slurry lines

Supply Scope

Domestic India supply and worldwide export packing

Key Features

Wear resistant, easy replacement, restores valve life

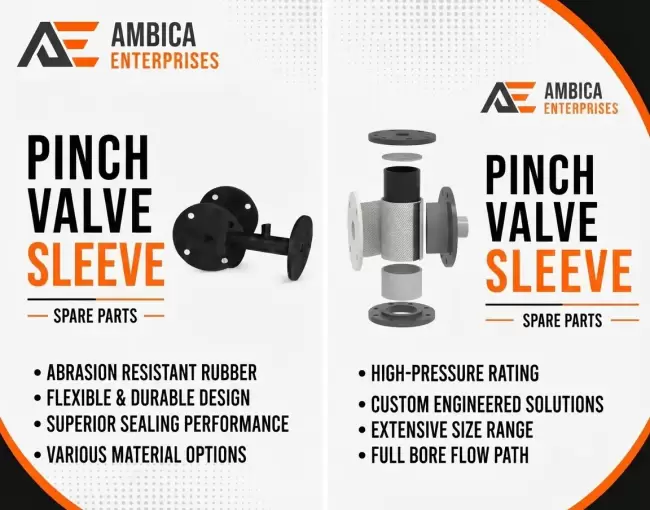

What Is a Pinch Valve Sleeve?

A pinch valve sleeve is the flexible elastomer tube installed inside a pinch valve body. When the valve pinches, only the sleeve contacts the process media—protecting metal parts from abrasion and enabling tight shut-off.

A Pinch Valve Sleeve for Sand Blasting Machine is designed for abrasive media such as sand, steel grit, and aluminum oxide. Replacing the sleeve restores performance without replacing the full valve assembly.

How Does a Pinch Valve Sleeve Work?

Media flows through the open elastomer sleeve. External force—manual, pneumatic, or actuated—compresses the sleeve to reduce or stop flow. When pressure is released, the sleeve returns toward its open shape and flow resumes.

Because the sleeve is the primary wear item, planned replacement keeps pinch valves reliable and leak-tight under abrasive duty.

Types of Pinch Valve Sleeves

Sleeve selection depends on media, temperature, chemical exposure, and valve size.

Natural Rubber / NR Sleeve

A common choice for abrasive sand and grit service.

Natural Rubber Advantages

Strong abrasion resistance
Good flexibility for pinch action
Cost-effective maintenance spare
Widely used in blasting systems

EPDM Pinch Valve Sleeve

Preferred where weather, heat, or certain chemicals are a concern.

EPDM Benefits

Improved temperature and weather resistance
Suitable for selected industrial media
Durable elastomer performance
Useful for outdoor plant installations

Nitrile and Specialty Sleeves

Chosen for oil resistance or application-specific elastomer needs.

Common Applications of Specialty Sleeves

Oil-exposed abrasive circuits
Custom chemical duty (grade dependent)
Food-grade options where required
OEM replacement matching

Benefits of Using a Quality Pinch Valve Sleeve

Lower maintenance cost: Replace sleeve instead of full valve.
Abrasion protection: Media contacts elastomer, not metal internals.
Reliable shut-off: Restores bubble-tight pinch performance.
Fast changeover: Reduces downtime on blasting lines.
Material choice: NR, EPDM, nitrile, and specialty options.

Pinch Valve Sleeve for Sand Blasting

In abrasive blasting systems, sleeve wear is expected. Keeping spare pinch valve sleeves on site prevents unplanned stoppages and keeps media control consistent. We supply sleeves matched to common pinch valve sizes used on sand blasting machines.

Choosing Reliable Pinch Valve Sleeve Manufacturers

Consider elastomer grade, dimensional accuracy, valve size compatibility, abrasion performance, and after-sales support. Correct sleeve matching is critical for leak-free operation.

Importance of Trusted Pinch Valve Sleeve Suppliers

Experienced suppliers help with size selection, material advice, stocking plans, and export packing for maintenance kits.

We supply pinch valve sleeves with pinch valves, remote controls, blast hose, and related spare parts from India. Request a quote for pinch valve sleeve supply today — share valve size, elastomer preference, quantity, and delivery location.
