A bucket elevator is a vertical lifting system that collects spent abrasive from the blast chamber floor or screw conveyor and delivers it back to the upper storage hopper. It keeps steel shot and grit circulating in a closed loop instead of being lost as waste.
A bucket elevator for a shot blasting machine operates in a dusty, abrasive environment. Buckets, belts or chains, and casings must resist wear from fine steel grit and rebounding shot while maintaining reliable lift capacity.
How Does a Bucket Elevator Work?
Spent media falls into a boot section at the elevator base. Buckets mounted on a belt or chain scoop the abrasive, lift it vertically, and discharge it into the hopper at the top. From there, media passes through screening, air wash, or magnetic separation before returning to the blast wheel.
When buckets wear thin, or the belt slips, shot blasting hopper levels drop and blast intensity falls. Replacing worn elevator components restores consistent media recycling and production quality.
Types of Bucket Elevators
Elevator selection depends on lift height, media volume, machine layout, and integration with recovery equipment.
Belt-Type Bucket Elevator
A widely used design for moderate to high-volume abrasive recovery.
Belt-Type Advantages
- Smooth, efficient vertical lift for steel shot and grit

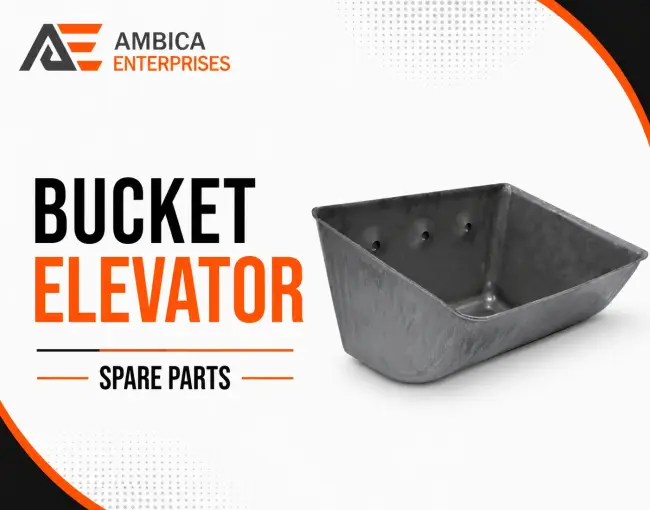

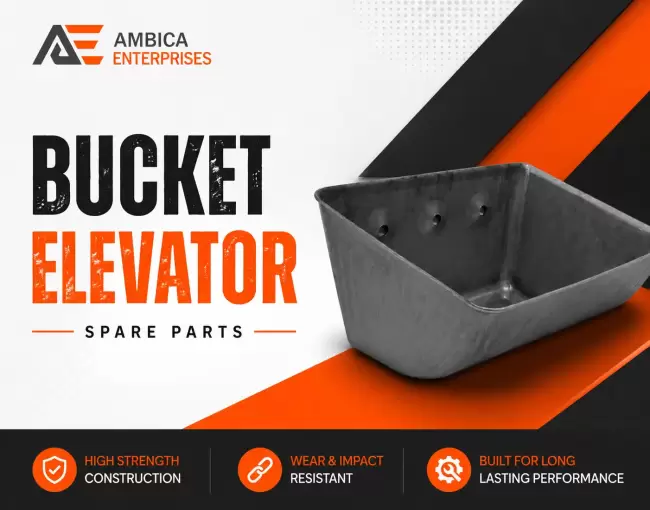

- Replaceable buckets for economical maintenance
- Compatible with many standard shot blasting machine layouts
- Quiet operation compared with some chain designs
Chain-Drive Bucket Elevator
Selected for heavy-duty duty cycles and demanding industrial plants.
Chain-Drive Benefits
- Strong drive for high-load abrasive recovery
- Suitable for continuous multi-shift production
- Robust performance in harsh foundry environments
- Long service life with proper lubrication and inspection
Custom Height & Capacity Elevators
Engineered when hopper elevation, throughput, or plant layout requires non-standard sizing.
Common Applications of Custom Elevators
- Large hanger shot blasting rooms with elevated hoppers
- Integrated recovery lines with air wash and magnetic separation
- Upgrade projects replacing obsolete elevator assemblies
- Export installations requiring modular lift sections
Benefits of Using a Quality Bucket Elevator
- Media recycling: Returns spent steel shot and grit to the blast circuit.
- Lower abrasive cost: Reduces fresh media purchase and waste disposal.
- Stable blast performance: Maintains hopper level for consistent shot blasting wheel feed.
- Cleaner plant operation: Supports closed-loop recovery instead of spillage.
- Easy maintenance: Individual buckets and belts replace without full system change.
Bucket Elevator for Shot Blasting Recovery
In industrial shot blasting plants, the bucket elevator is as important as the blast wheel for cost control and uptime. Paired with screw conveyors and air wash systems, it completes the abrasive recovery loop. We supply elevators and spare bucket sets for common machine models from India.
Choosing Reliable Bucket Elevator Manufacturers
Evaluate bucket wear grade, lift capacity, belt or chain quality, casing sealing, and compatibility with your recovery layout. Correct sizing prevents media starvation and overflow issues.
We are a leading bucket elevator manufacturer in India, offering high-quality roller conveyor systems, shot blasting wheels, sand blasting nozzles, sand blasting helmets, shot blasting hoses, pinch valves, remote control valves, and components designed for shot blasting and other industrial applications. Our range includes durable shot blasting roller conveyors and related shot blasting machine spare parts engineered for reliable material handling and continuous operation.
Importance of Trusted Bucket Elevator Suppliers
Experienced suppliers help with capacity calculation, bucket specification, spare stocking, and export packing for plant upgrades and breakdown support.
We also supply bucket elevators, blast hoses, deadman sand blasting hoses, sand blasting air hoses, shot blaster hoses, grit blasting hoses, conductive blast hoses, abrasive blasting hose couplings, remote control valves, and other abrasive blasting accessories. With a focus on quality, durability, and consistent performance, we serve customers across India and international markets. Request a quote for bucket elevator supply today — share lift height, media type, capacity, and delivery location.
